Continuous Powder Coating Machine

Features

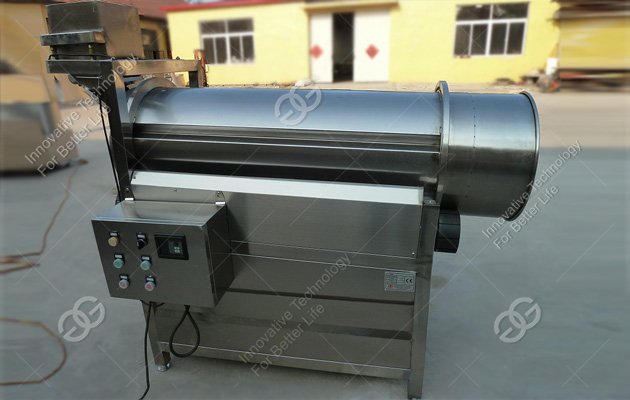

Powder Coating MachineThis kind of seasoning machine is suitable for food production in the process of food flavoring. This equipment has the seasoning cylinder, automatic control of speed and the capacity of the material, is suitable for the assembly line, the continuity of flavor. With automatic feeding device, feeding device can adjust the size of the powder quantity, can stir independently seasoning powder while coating seasonings, will not form precipitation or adhesion by the different proportion of different.  This powder coating machine is used to cover powder on the surface on chicken nuggets. It can continuous working, and the powdering amount also can be controlled. Made of stainless steel 304. Automatic discharging system.

Features:
1. Being applicable to food production process to lump, flake, granular powder and mixing materials of food.
2. The rotational speed and slope of the roll barrel can be adjustable, the amount of powder supplying can also be controlled, thus meet the requirements of different products mix, showing obvious effect on reducing the artificial labor and improving production efficiency, and can ensure every batch of product mix evenly.

Structure
The equipment consists of the base bracket, rotating drum and feeding device, transmission system, speed control system

Steps
a Connect electricity, pull powder into powder in the vessel
b Start the roller machine, check drum run normally, normal rotation direction
c When raw materials convey to inside the drum, start dusting motor, adjust speed of powder coating
d According to the condition of raw materials mixed with seasoning powder, can appropriately adjust the Angle of roller
e Check the working parts operating normally, then start work

Technical Data
Model Capacity Power Dimension Weight
GG 500Kg/h 1.1Kw 1500*1000*1700mm 200Kg
