Pellet Snack|Bugles Chips Production Line


This production line is from materials mixing, extruding, frying, and flavoring to final products automatically. The shapes and sizes of the final products are decided by the changing the mould. We will design and make it for you. It is easy to change the moulds on the extruder. You can flavor the food during the raw materials mixing or flavoring process of the flavoring drum (roller).



Allocation of the production line:

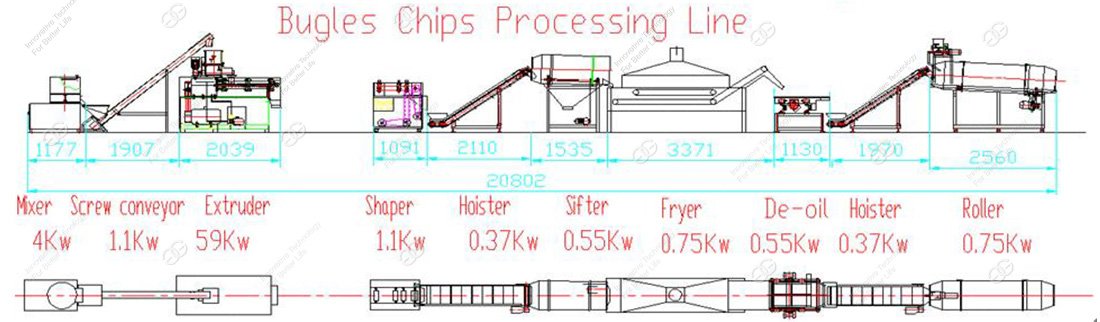

Mixer→ Screw conveyor→ Twin-screw extruder→ Hoister→ Diesel heated continuous fryer→ Oil seperator→ Flavoring hoister→ Flavoring roller→ Cooling conveyer

Model   Parameter	Mixer   GGBFJ-3	Screw conveyor   GGLXSL	Extruder    GGTSE65-III	Hoister    GGTSJ-I	Fryer    GGYZJ-L	Oil seperator   GGZDS	Flavoring hoister   GGTSTW	Roller   GGDGT	Cooling conveyer   GGLQSS-5
Installed capacity(kw)	3	0.75	33.87	0.55	3.3	0.37	1.25	0.75	1.5
Output(kg/h)	25-30kg/batch	150	150	150	150	150	150	150	150
Dimension(m)	0.8*0.6*1.1	3.2*0.6*0.7	2 .6*0.9*1.8	2.0*0.5*1.4	4.0*1.3*2.5	1.1*0.6*0.7	2.5*0.8*1.6	2.5*0.8*1.6	5.2*0.7*1.5
